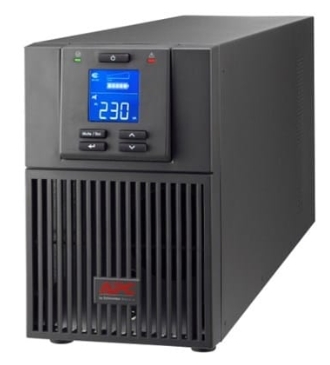

APC Easy UPS On-Line SRV1KI

APC Easy UPS On-Line SRV 1000VA 230V
SRV1KI
Presentation
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time
Usually in Stock
Main
Run time for load
800
W
Min-max: 80-800 W
3min 49s
Max. Capacity Used
100 %
Main Input Voltage
230 V AC 1 phase
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
220 V
240 V
Output voltage
230 V AC 1 phase
Other Output Voltage
220 V
240 V
Rated power in W
800 W
Rated power in VA
1000 VA
Input Connection Type
IEC 60320 C14
Output connection type
3 IEC 60320 C13
Cable length
1.50 m
Number of cables
1
Provided equipment
1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
user manual
Range of product
Easy UPS On-Line
Complementary
Battery type
Lead-acid internal included
UPS connectivity
Serial port
USB port
Available expansion slot
Mounting mode
Tower
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery type
Lead-acid battery
Battery voltage
24 V
Extended runtime
0
Number of battery filled slots
1
Number of battery free slots
0
Battery recharge time
4 h
Battery life
3…5 year(s)
Replacement battery
APCRBCV203
Battery charger power
30 W rated
General
Max runtime
4 min
Number of power module filled slots
0
Number of power module free slots
0
Redundant
No
Physical
Colour
Black (RAL 7010)
Height
223 mm
Width
145 mm
Depth
288 mm
Net weight
9.3 kg
Mounting location
Front
Mounting support
Floor
Mounting preference
No preference
Mounting mode
Not rack-mountable
USB compatible
Yes
Mounting position
Vertical
Input
Input voltage limits
110...285 V half load
160...280 V full load
Network frequency
40...70 Hz auto sensing
Output
Maximum configurable power in VA
1000 VA
Maximum configurable power in W
800 W
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion
3 %
UPS type
Double conversion online
Wave type
Sine wave
Efficiency
88 % (full load)
Additional information
Configurable for 220 : 230 or 240 nominal output voltage
Bypass type
Internal bypass (automatic and manual)
Crest factor
3 : 1
Conformance
Product certifications
CE
UKCA
EAC
TISI
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...3000 m
Ambient air temperature for storage
-20…50 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0…15000 m
Acoustic level
50 dBA
Heat dissipation
372 Btu/h
IP degree of protection
IP20
Communications & Management
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots
1
Control panel
Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate
600 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
33 cm
Package 1 Width
23.5 cm
Package 1 Length
36.5 cm
Package 1 Weight
10.6 kg
