Grandstream GCC6021

Brand: Grandstream
Model: GCC6021
Product Type: Enterprise Convergence System – Network Switch, VPN Router, Next-Generation Firewall and Network Management.

The following specifications are prepared for direct copy-and-paste into your SNM Pakistan online store.
Full Product Specifications
Key Features
- All-in-One Enterprise Networking Solution.
- Integrated 10Gbps VPN Router.
- Next-Generation Firewall with Advanced Security.
- Integrated 28-Port Network Switching Platform.
- 4 x 10 Gigabit SFP+ Ports.
- 8 x 2.5 Gigabit Ethernet Ports.
- 16 x Gigabit Ethernet Ports.
- 24 PoE Output Ports.
- Up to 370W Total PoE Power Budget.
- Multi-WAN Load Balancing and Failover.
- High Availability (HA) Support.
- Centralized Network Management.
- Supports Grandstream GWN Access Points and Network Devices.
Network & Switching Specifications
- 4 x 10Gbps SFP+ Ports.
- 8 x 2.5Gbps Ethernet Ports.
- 16 x 10/100/1000Mbps Gigabit Ethernet Ports.
- Maximum 5 Configurable WAN Connections.
- WAN/LAN Configurable Ethernet Ports.
- Dynamic Routing.
- VLAN Support (IEEE 802.1Q).
- QoS and Traffic Prioritization.
- DHCP Server and DNS Server.
- IGMP Proxy.
- IPv4 and IPv6 Support.
- Multi-WAN Load Balancing.
- Automatic WAN Failover.
- Performance-Based WAN Link Selection.
PoE Specifications
- 24 PoE Output Ports.
- 8 x IEEE 802.3af/at/bt PoE Ports.
- 16 x IEEE 802.3af/at PoE Ports.
- Maximum PoE Power Budget: 370W.
- Intelligent PoE Power Management.
- Dynamic PoE Power Allocation.
- Individual Port PoE Monitoring.
VPN Router Specifications
- Router Throughput: Up to 10Gbps.
- Multi-WAN Routing.
- Up to 5 WAN Connections.
- WAN Load Balancing.
- Automatic WAN Failover.
- NAT and Port Forwarding.
- DMZ and DDNS.
- DHCP Server.
- DNS Server.
- IGMP Proxy.
- IPv4 and IPv6 Routing.
- Static and Dynamic Routing.
- IPsec VPN Site-to-Site and Client-to-Site.
- OpenVPN Server and Client.
- WireGuard VPN.
- PPTP and L2TP VPN.
- IPsec VPN Throughput: Up to 1.3Gbps.

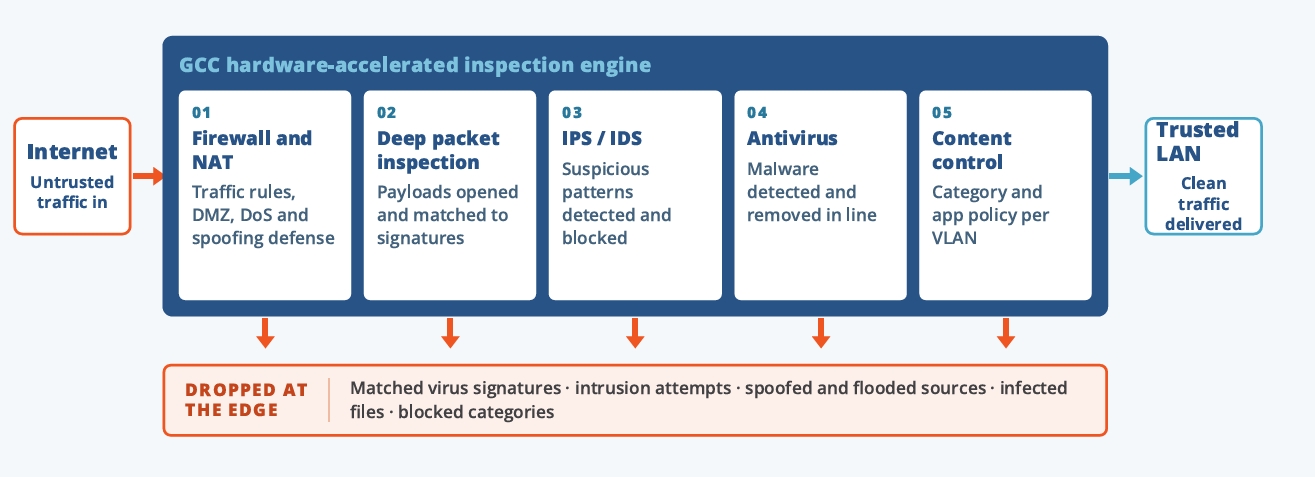

Next-Generation Firewall Specifications
- NGFW Throughput (DPI + IPS): Up to 9Gbps.
- Deep Packet Inspection (DPI).
- Intrusion Detection and Prevention (IDS/IPS).
- Antivirus Protection.
- Stateful Packet Inspection.
- SSL Traffic Inspection.
- Application Identification and Control.
- DNS Filtering.
- Website and URL Filtering.
- Category and Keyword Filtering.
- Geo-IP Filtering.
- Email Security.
- DoS Attack Protection.
- Spoofing Protection.
- Traffic Rules and Access Control.
Some advanced firewall protection features require an active firewall service subscription.
Built-in IP PBX Specifications
- Supports 50 Users/Extensions by Default.
- Supports 16 Concurrent Calls by Default.
- Expandable PBX Capacity through Paid Upgrade Options.
- SIP-Based Voice and Video Communication.
- Interactive Voice Response (IVR).
- Call Forwarding.
- Call Transfer.
- Call Parking.
- Intercom and Paging.
- Conference Calling.
- Emergency Calling.
- Voicemail.
- SIP Endpoint Zero-Touch Provisioning.

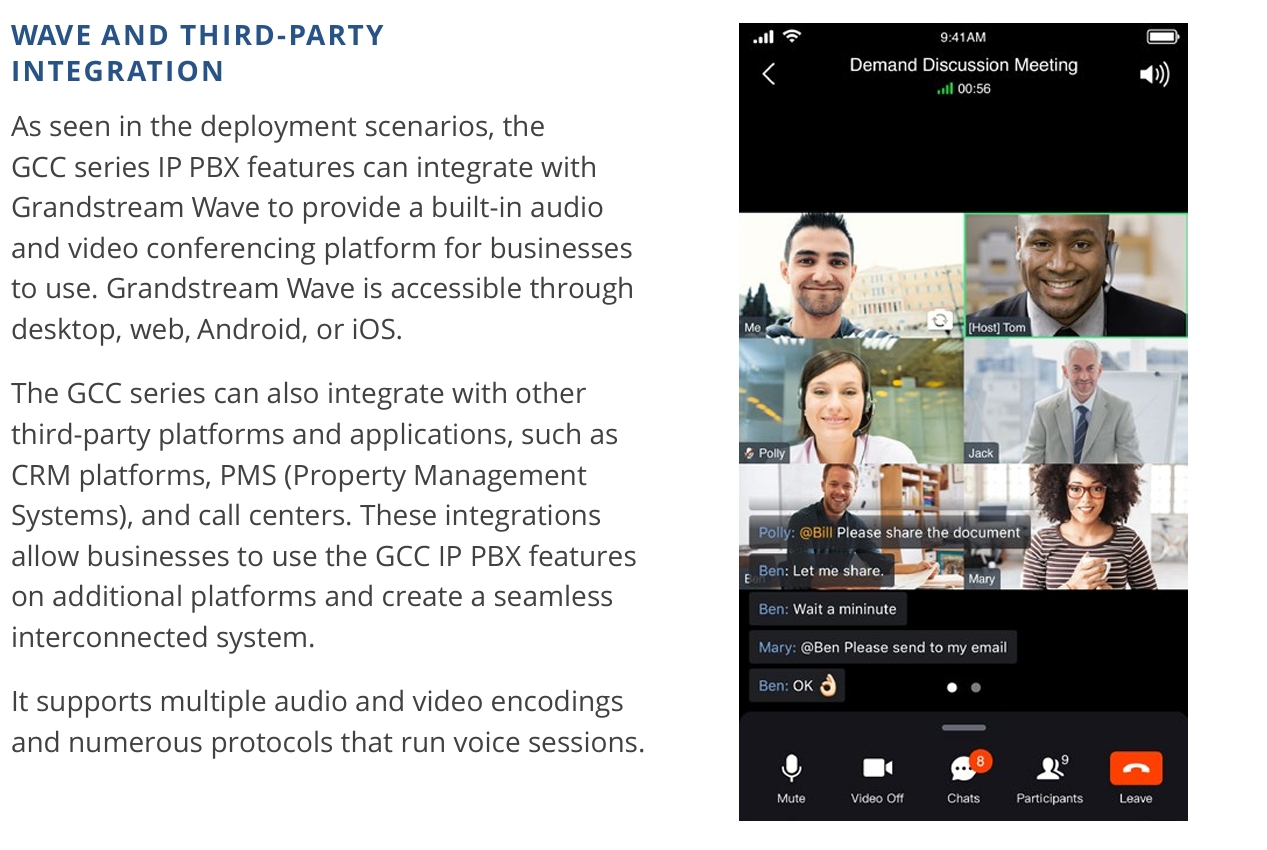

- Grandstream Wave Desktop, Web, Android and iOS Support.
- CRM and Call Centre Integration.
- Property Management System (PMS) Integration.
- Third-Party API Integration.
Note: The 50-user and 16-concurrent-call specification is the default PBX capacity. Confirm the exact upgrade capacity and licensing options with Grandstream before advertising a specific maximum of 1,000 extensions.
grandstream.com+1

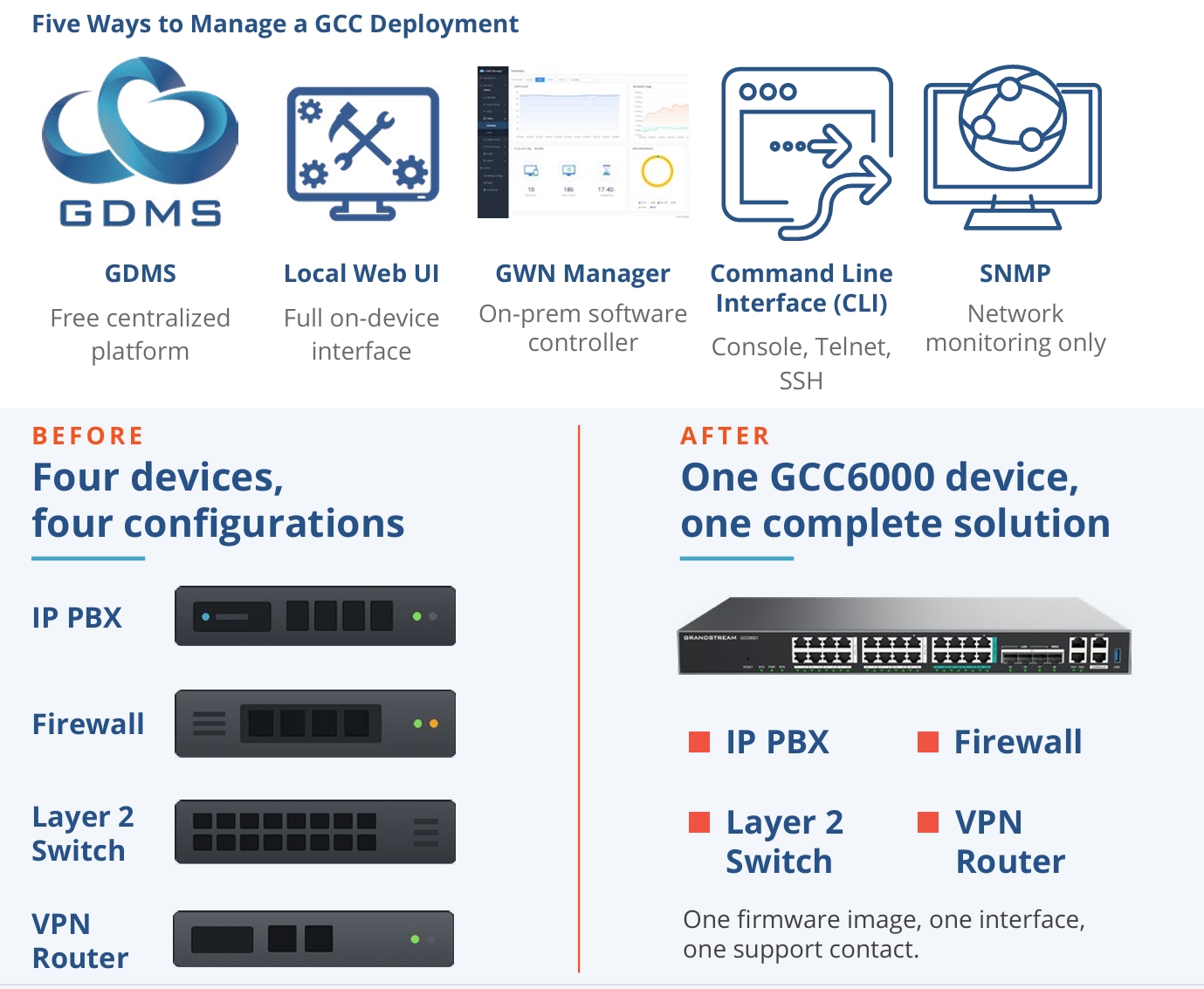

Network Management
- Grandstream Device Management System (GDMS).
- GWN Mobile Application.
- Local Web-Based GUI.
- SSH Management.
- SNMP v1/v2c/v3.
- Command Line Interface (CLI).
- Centralized Network Management.
- Network Topology Visualization.
- Remote Device Monitoring.
- CPU and Memory Monitoring.
- Network Diagnostics.
- Packet Capture.
- External Syslog.
- Grandstream Access Point and Switch Management.
- Supports up to 300 GWN Access Points.
- Supports up to 1,000 Network Clients.
Hardware Specifications
Specification Details
Processor Quad-Core Cortex-A73
CPU Frequency 1.8GHz
RAM 4GB DDR4 + 256MB DDR3
Internal Storage 32GB eMMC
Additional Memory 128MB NAND
NOR Flash 4MB
Router Throughput 10Gbps
NAT Sessions Up to 1 Million
NGFW Throughput 9Gbps
Mounting Desktop / Rack Mount
Dimensions 440 × 301.5 × 44mm
Weight 4.2kg

Power Specifications
- Universal Power Adapter Included.
- Input Voltage: 100–240V AC.
- Input Frequency: 50–60Hz.
- Power Output: 54V DC / 7.8A.
- Power Supply Rating: 420W.
- Total PoE Budget: 370W.
- 8 x PoE++ / PoE+ / PoE Ports (IEEE 802.3af/at/bt).
- 16 x PoE+ / PoE Ports (IEEE 802.3af/at).
- Redundant Power Supply (RPS) Input.
- Intelligent PoE Power Allocation.
Environmental Specifications
- Operating Temperature: 0°C to 45°C.
- Storage Temperature: -10°C to 60°C.
- Operating Humidity: 5%–95% Non-Condensing.
- Certifications: FCC, CE, RCM, IC.

5 Best Key Specifications
These are ideal for your product listing's short specification section:
1. 4-in-1 Solution: Integrated IP PBX, 10Gbps VPN Router, Next-Generation Firewall and Managed Network Switch.
2. Advanced Switching: 4 x 10G SFP+, 8 x 2.5G Ethernet and 16 x Gigabit Ethernet Ports.
3. Powerful PoE: 24 PoE Ports with 370W Total PoE Power Budget.
4. Built-in IP PBX: 50 Extensions and 16 Concurrent Calls by Default, with Upgrade Options.
5. Enterprise Security: 9Gbps NGFW Throughput, IDS/IPS, DPI, Antivirus, Multi-WAN and VPN Support.
