DINSTAR C60UP
PKR 7,000Category: DINSTAR Phones
Key Features
- 2 Lines
- 6 SIP Accounts
- 5 Way Conference
- PoE
- EHS
Product Description

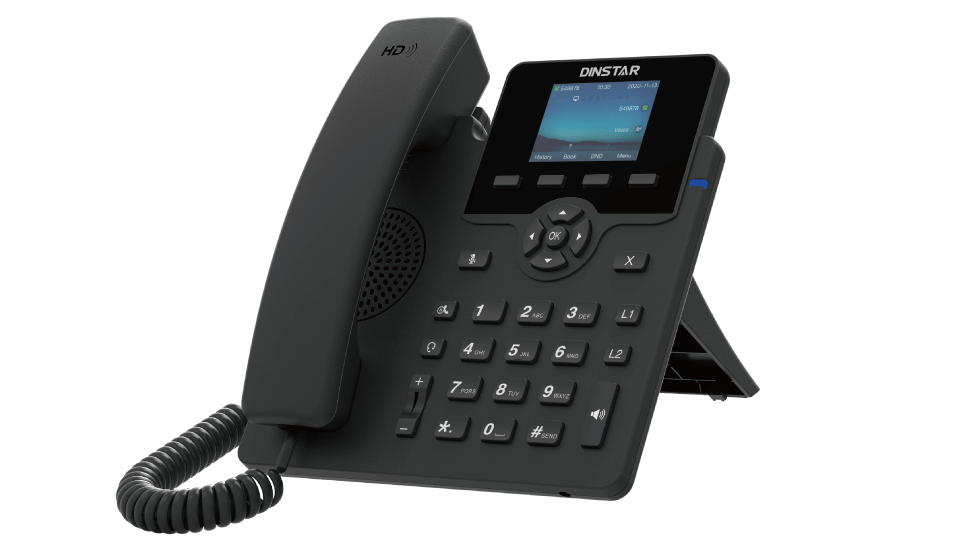

Dinstar C62UP IP Phone
The Dinstar C62UP is an entry-level professional SIP IP phone with a 2.4-inch color display, HD voice, 6 SIP accounts, 5-way conferencing, programmable keys, and dual Gigabit Ethernet ports. The C62UP supports IEEE 802.3af PoE, allowing it to receive power directly from a compatible PoE network switch.
Specifications
Specification Dinstar C62UP
Product Type Enterprise SIP IP Phone
SIP Accounts Up to 6
Line Keys 2
Display 2.4" Color TFT LCD with Backlight
Display Resolution 240 × 320 pixels
Audio HD Voice
Wideband Codec G.722, OPUS-WB
Other Codecs G.711A/U, G.729, G.723.1, G.726, iLBC, OPUS
Conference 5-way Audio Conference
Ethernet Ports 2 × 10/100/1000 Mbps Gigabit Ethernet
PoE Yes, IEEE 802.3af
Headset EHS wireless headset support
Headset Compatibility Plantronics, Jabra, Sennheiser
Speakerphone Full-duplex hands-free speakerphone
DSP Digital Signal Processor
Echo Cancellation Supported
Jitter Handling Dynamic Jitter Buffer
VAD Voice Activity Detection
CNG Comfort Noise Generation
Protocols SIP v1 (RFC2543), SIP v2 (RFC3261)
DTMF In-Band, RFC2833, SIP INFO
Auto Provisioning FTP / TFTP / HTTP / HTTPS / PnP
Configuration Web GUI and phone keypad
Software Upgrade Via Web
Network Capture Supported
NTP Supported
Daylight Saving Time Supported
Call Functions Call Hold, Mute, DND, Call Forward, Call Waiting, Call Transfer, Redial, Call Return, Auto Answer
Dialing Speed Dial, Hotline, Direct IP Call, Dial Plan
Messaging SMS, Voicemail, MWI
Phonebook Up to 1,000 entries
Call Logs Up to 1,000 entries
Remote Phonebooks Up to 5 URL-based phonebooks
Installation Desktop / Wall Mountable
Compatibility 3CX, Asterisk, Yeastar, BroadSoft and other SIP/IP-PBX platforms
These specifications are based on Dinstar's C62U/C62UP documentation; the C62UP differs from the C62U primarily in PoE support, with C62UP providing PoE and the C62U requiring a power adapter.
